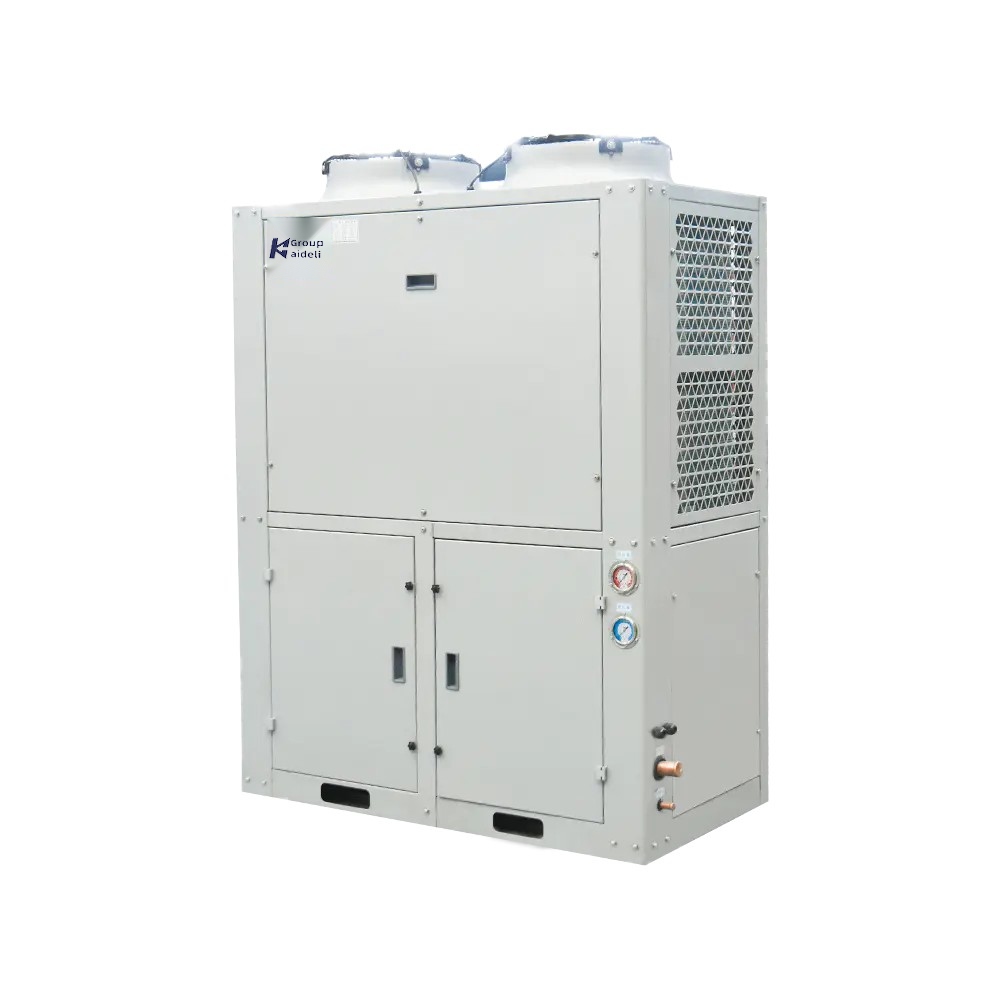

TF Series Box Type Condensing Unit

The TF Series Box Type Condensing Unit is a compact refrigeration condensing unit designed for commercial and industrial refrigeration systems. Its enclosed box-type configuration integrates key refrigeration equipment into an organized and space-saving system, providing a practical solution for different refrigeration applications.

The TF Series is suitable for cold storage, cold rooms, refrigerated warehouses, food processing, commercial refrigeration, cold chain refrigeration, and other temperature-controlled applications.

Key Features of the TF Series Box Type Refrigeration Condensing Unit

Compact Box Type Refrigeration Unit

The TF Series features a compact box-type design that integrates key refrigeration equipment into an organized refrigeration system. The enclosed configuration helps optimize equipment layout and provides a practical solution for refrigeration installations where available space is limited.

Reliable Refrigeration Compressor

The refrigeration compressor is a core component of the TF Series condensing unit. Proper compressor selection helps match the required refrigeration capacity, evaporating temperature, condensing temperature, refrigerant, and operating conditions of the refrigeration system.

Efficient Refrigeration Condenser

The refrigeration condenser removes heat from the refrigerant during the condensing process. Proper condenser selection and heat rejection capacity help maintain stable condensing temperature and reliable refrigeration system operation.

Integrated Refrigeration Components

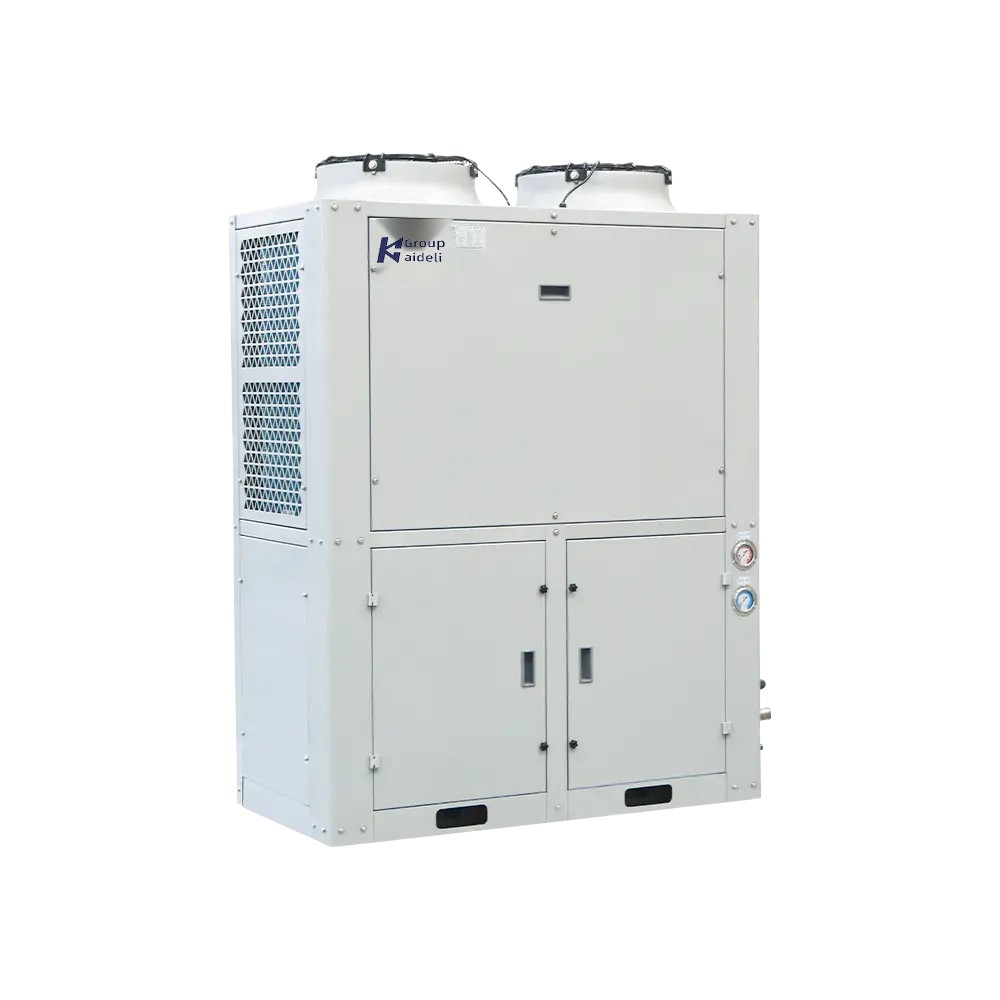

TF Series Box Type Condensing Unit TF-15MY

Interactive 12-Component Modular Breakdown & Specifications

Click pins to inspect

Series: TF (Box Top-Discharge)

Capacity: 15 HP (Nominal Power)

Temp Range: M (Med-High Temp -5°C~+5°C)

Refrigerant: Y (R404A / R507A Eco)

1 2 3 4 5 6 7 8 9 10 11 12

1 Refrigeration Compressor 2 Air-Cooled Condenser 3 Liquid Receiver 4 Filter Drier 5 Sight Glass 6 Solenoid Valve 7 Pressure Switch 8 Controls & Accessories 9 Box / Enclosure 10 Condenser Fan Motor 11 Refrigerant Piping 12 Electrical Control Box

COMPONENT 01

Refrigeration Compressor (15 HP)

Main Function / Role

Continuous refrigerant vapor suction, compression, and high-pressure circulation.

TF-15MY Technical Spec

15HP high-COP scroll/semi-hermetic compressor optimized for medium-high temperature range (-5°C to +5°C) with built-in thermal protector and crankcase heater.

️ Power Core

COMPONENT 02

Air-Cooled Refrigeration Condenser

Main Function / Role

High-temperature superheated vapor desuperheating and high-efficiency liquefaction.

TF-15MY Technical Spec

L-shaped / high-density hydrophilic blue aluminum fins with Ø9.52mm inner-grooved seamless copper tubes for high heat flux and salt-spray resistance.

️ Heat Exchanger

COMPONENT 03

Liquid Receiver

Main Function / Role

Stores liquid refrigerant and buffers fluctuating system charge during load changes.

TF-15MY Technical Spec

High-capacity ASME/CE certified seamless steel pressure vessel equipped with rotalock shut-off valves and safety relief valve (Set: 2.8 MPa).

️ Pressure Vessel

COMPONENT 04

Filter Drier

Main Function / Role

Absorbs moisture, neutralizes harmful system acids, and filters solid debris.

TF-15MY Technical Spec

Solid 100% 3Å molecular sieve desiccant core with 20-micron filtration pad to protect expansion valve orifices from freezing and erosion.

️ Purification

COMPONENT 05

Sight Glass

Main Function / Role

Visual confirmation of bubble-free liquid refrigerant flow and moisture levels.

TF-15MY Technical Spec

High-pressure optical viewing window with chemical moisture indicator ring (Green = System Dry, Yellow = System Wet/Caution).

️ Visual Diagnostics

COMPONENT 06

Solenoid Valve

Main Function / Role

Automated liquid line shut-off during pump-down and compressor shutdown cycles.

TF-15MY Technical Spec

Pilot-operated normally closed (NC) brass body solenoid valve with IP65 moisture-proof encapsulated electromagnetic coil (220V/50Hz).

️ Flow Control

COMPONENT 07

Pressure Switch

Main Function / Role

Monitors operating pressures and protects against high head or loss of charge.

TF-15MY Technical Spec

Dual-pressure safety controller (HP: Manual reset cutout at 2.6 MPa; LP: Auto-reset cutout at 0.05 MPa) with SPDT micro-switch contacts.

️ Safety Protection

COMPONENT 08

Refrigeration Controls & Accessories

Main Function / Role

System pressure monitoring, vibration isolation, and charging service access.

TF-15MY Technical Spec

Dual glycerin-filled anti-vibration pressure gauges (High & Low), Schrader charging access valves, vibration absorber, and safety relief valve.

️ System Accessories

COMPONENT 09

Box / Enclosure

Main Function / Role

Outdoor weatherproof housing, acoustic sound dampening, and mechanical protection.

TF-15MY Technical Spec

Heavy-gauge galvanized steel sheet with 200°C electrostatic anti-corrosion powder coating, acoustic foam lining, and double front service access doors.

️ Cabinet Housing

COMPONENT 10

Condenser Fan / Fan Motor

Main Function / Role

Forced top-discharge airflow across condensing coils for maximum heat rejection.

TF-15MY Technical Spec

Dual top-mounted Ø500mm external rotor axial fans, IP54 insulation class F motor, high-airflow aerodynamic sickle blades with steel protective guard.

️ Airflow Dynamics

COMPONENT 11

Refrigerant Piping

Main Function / Role

Hermetic closed-loop circulation of liquid and vapor refrigerant throughout unit.

TF-15MY Technical Spec

Heavy-wall deoxidized refrigeration-grade copper tubes (TP2), silver-brazed joints, elastomeric thermal insulation on suction line, and external brass shutoff valves.

️ Copper Loop

COMPONENT 12

Electrical Control Box

Main Function / Role

Integrated electrical distribution, automatic microcomputer cycling & motor protection.

TF-15MY Technical Spec

Pre-wired electrical panel with heavy-duty AC contactor, phase sequence & loss protection relay, thermal overload protector, and numbered terminal blocks (380V/3P/50Hz).

️ Electrical Panel

Enclosed Box Type Design

The enclosed box-type structure provides an organized equipment layout and helps simplify installation. The compact design is suitable for refrigeration projects where equipment integration and efficient use of installation space are important.

Flexible Refrigeration System Configuration

The TF Series can be selected according to different refrigeration capacity requirements, operating temperatures, refrigerant configurations, and installation conditions, allowing the condensing unit to be integrated into various refrigeration system designs.

TF Series Refrigeration Condensing Unit Technical Specifications

The technical configuration of the TF Series should be selected according to the refrigeration system requirements and actual operating conditions.

Medium & Low Temperature Refrigeration Operating Range

The TF Series can be configured according to the required evaporating temperature and refrigeration application. Medium-temperature and low-temperature refrigeration systems have different operating requirements and should be matched with the appropriate compressor and condensing unit capacity.

Medium Temperature Refrigeration Applications

Medium-temperature refrigeration is commonly used for refrigerated storage and commercial refrigeration applications where products require controlled temperatures above typical freezing conditions.

Typical applications include:

• Cold rooms

• Fresh food storage

• Refrigerated warehouses

• Beverage refrigeration

• Commercial refrigeration

• Food processing refrigeration

Low Temperature Refrigeration Applications

Low-temperature refrigeration systems are designed for applications requiring lower evaporating temperatures and freezing conditions.

Typical applications include:

• Frozen food cold storage

• Meat and seafood cold storage

• Frozen product warehouses

• Freezer rooms

• Cold chain logistics

• Food processing refrigeration

Refrigeration Compressor, Condenser & Integrated Components

A refrigeration condensing unit consists of several important components that work together to circulate refrigerant and reject heat from the refrigeration system.

Refrigeration Compressor

The refrigeration compressor increases refrigerant pressure and circulates refrigerant through the refrigeration cycle. Compressor selection should consider refrigeration capacity, evaporating temperature, condensing temperature, refrigerant type, and operating conditions.

Refrigeration Condenser

The refrigeration condenser transfers heat from the high-pressure refrigerant to the surrounding environment. Its heat rejection capacity should be properly matched with the compressor and overall refrigeration system requirements.

Liquid Receiver & Refrigeration Accessories

The liquid receiver provides refrigerant storage within the system and helps manage liquid refrigerant during different operating conditions.

Depending on the system configuration, refrigeration accessories may include:

• Filter drier

• Sight glass

• Solenoid valve

• Refrigeration valves and fittings

• Refrigeration piping accessories

The exact component configuration should be confirmed according to the selected TF Series model.

Controls & Protection Components

Pressure switches and refrigeration controls can monitor and protect the refrigeration system. Proper control and protection components help support stable operation and protect key refrigeration equipment under different operating conditions.

TF Series Box Type Condensing Unit Models & Selection Guide

Selecting the appropriate TF Series model requires consideration of the refrigeration system's cooling capacity, operating temperature, refrigerant, compressor requirements, and installation environment.

Important selection factors include:

• Required refrigeration capacity

• Evaporating temperature

• Condensing temperature

• Refrigerant type

• Compressor capacity

• Condenser capacity

• Ambient temperature

• Installation conditions

• Electrical requirements

The condensing unit should be selected according to the actual refrigeration load and system operating conditions rather than compressor power alone.

TF Series Condensing Unit Dimensions & Installation Requirements

Box Type Condensing Unit Dimensions & Mounting

The TF Series box-type structure provides an organized equipment configuration for refrigeration system installation. Actual dimensions and mounting requirements depend on the selected model and configuration.

The installation location should provide a stable mounting surface and sufficient space for equipment operation, inspection, and maintenance.

Ventilation & Installation Clearance

Adequate ventilation is important for reliable condensing unit operation. The installation area should provide sufficient airflow and clearance around the condenser and other heat-rejection components.

Installation conditions should consider:

• Ambient temperature

• Air circulation

• Equipment clearance

• Maintenance access

• Drainage requirements

• Refrigeration piping layout

Refrigeration Piping & Electrical Connection

Refrigeration piping should be designed according to the refrigeration capacity, refrigerant, pipe length, pressure drop, and system configuration.

Electrical connections should comply with applicable electrical requirements and match the selected TF Series model.

TF Series Condensing Unit Applications for Cold Storage & Commercial Refrigeration

The TF Series Box Type Condensing Unit can be used in various temperature-controlled refrigeration systems.

Cold Storage & Cold Rooms

The TF Series can be integrated into refrigeration systems for cold rooms and cold storage facilities requiring reliable temperature control.

Refrigerated Warehouses

Refrigerated warehouses require suitable refrigeration equipment to maintain controlled storage temperatures. The appropriate TF Series configuration can be selected according to the warehouse refrigeration load and operating temperature.

Food Processing Refrigeration

Food processing facilities often require refrigeration for raw materials, processed products, and temperature-controlled production areas. The TF Series can be integrated into refrigeration systems for different food processing applications.

Meat & Seafood Cold Storage

Meat and seafood storage requires controlled refrigeration conditions. Proper refrigeration capacity and system configuration are important for maintaining the required storage temperature.

Cold Chain Logistics

Cold chain logistics facilities require stable refrigeration throughout temperature-controlled storage and distribution processes. The TF Series can be used in refrigeration systems for cold chain warehouses and related applications.

Commercial Refrigeration

The TF Series can also be applied to commercial refrigeration systems, including refrigerated storage areas, food retail facilities, and other temperature-controlled commercial applications.

Industrial Refrigeration Systems

For industrial refrigeration applications, condensing unit selection should consider refrigeration capacity, operating temperature, ambient conditions, refrigerant requirements, and continuous operating conditions.

Box Type vs Open Type Condensing Unit: Which Is Right for Your Refrigeration System?

Box Type Condensing Unit

A box-type condensing unit integrates refrigeration equipment into an enclosed structure. This configuration provides a compact equipment arrangement and can be suitable for refrigeration installations where organized equipment layout and space efficiency are important.

Open Type Condensing Unit

An open-type condensing unit generally provides direct access to individual refrigeration components. This configuration can be suitable for applications where frequent maintenance, component inspection, or flexible equipment arrangements are required.

Choosing the Right Condensing Unit Design

The choice between a box-type and open-type condensing unit depends on the refrigeration system design, installation environment, maintenance requirements, available space, and equipment configuration.

How to Select the Right Condensing Unit for Your Refrigeration System

Determine Required Refrigeration Capacity

Calculate the required refrigeration capacity based on room dimensions, product load, ambient conditions, door openings, insulation, pull-down requirements, and other heat loads.

Select the Appropriate Evaporating Temperature

The required evaporating temperature depends on the target storage or operating temperature. Medium-temperature and low-temperature refrigeration systems require different refrigeration configurations.

Choose the Refrigerant

Refrigerant selection should consider system design, operating temperature, refrigeration capacity, applicable regulations, and equipment compatibility.

Match Compressor & Condenser Capacity

The refrigeration compressor and condenser should be properly matched to provide the required cooling capacity and heat rejection performance under the expected operating conditions.

Consider Ambient Temperature & Installation Conditions

Ambient temperature, ventilation, installation location, altitude, maintenance space, and electrical conditions can affect condensing unit performance.

Why Choose KAIDELI as Your Refrigeration Equipment Manufacturer?

Professional Refrigeration Equipment Manufacturing

KAIDELI focuses on refrigeration equipment and refrigeration system solutions for commercial and industrial applications.

Box Type Condensing Unit Solutions

KAIDELI provides box-type condensing unit solutions designed for different refrigeration applications and system configurations.

Integrated Refrigeration Components

A properly configured condensing unit brings together the refrigeration compressor, refrigeration condenser, controls, and required refrigeration accessories to support efficient system integration.

Customized Refrigeration Solutions

Different refrigeration projects have different cooling capacity, temperature, refrigerant, installation, and operating requirements. KAIDELI can provide refrigeration equipment solutions according to specific project requirements.

Technical Support & After-Sales Service

Technical support can assist customers with condensing unit selection, refrigeration system configuration, installation requirements, and equipment operation.

TF Series Box Type Condensing Unit FAQs

What is a TF Series Box Type Condensing Unit?

The TF Series Box Type Condensing Unit is an enclosed refrigeration condensing unit designed for commercial and industrial refrigeration systems. Its box-type configuration provides a compact equipment solution for different refrigeration applications.

What applications can the TF Series Condensing Unit be used for?

The TF Series can be used in refrigeration systems for cold storage, cold rooms, refrigerated warehouses, food processing, meat and seafood storage, cold chain logistics, commercial refrigeration, and industrial refrigeration applications.

What components are included in the TF Series?

The exact component configuration depends on the selected TF Series model. A refrigeration condensing unit may include a refrigeration compressor, refrigeration condenser, liquid receiver, filter drier, sight glass, solenoid valve, pressure switch, and refrigeration controls & accessories.

Is the TF Series suitable for medium-temperature refrigeration?

The TF Series can be configured for refrigeration applications according to the required evaporating temperature and refrigeration capacity. The actual operating range should be confirmed according to the selected model and technical specifications.

Is the TF Series suitable for low-temperature refrigeration?

The TF Series can be configured for low-temperature refrigeration applications when the selected model and compressor configuration meet the required operating conditions.

How do I choose the right TF Series model?

Model selection should consider refrigeration capacity, evaporating temperature, condensing temperature, refrigerant, compressor capacity, condenser capacity, ambient temperature, installation conditions, and electrical requirements.
