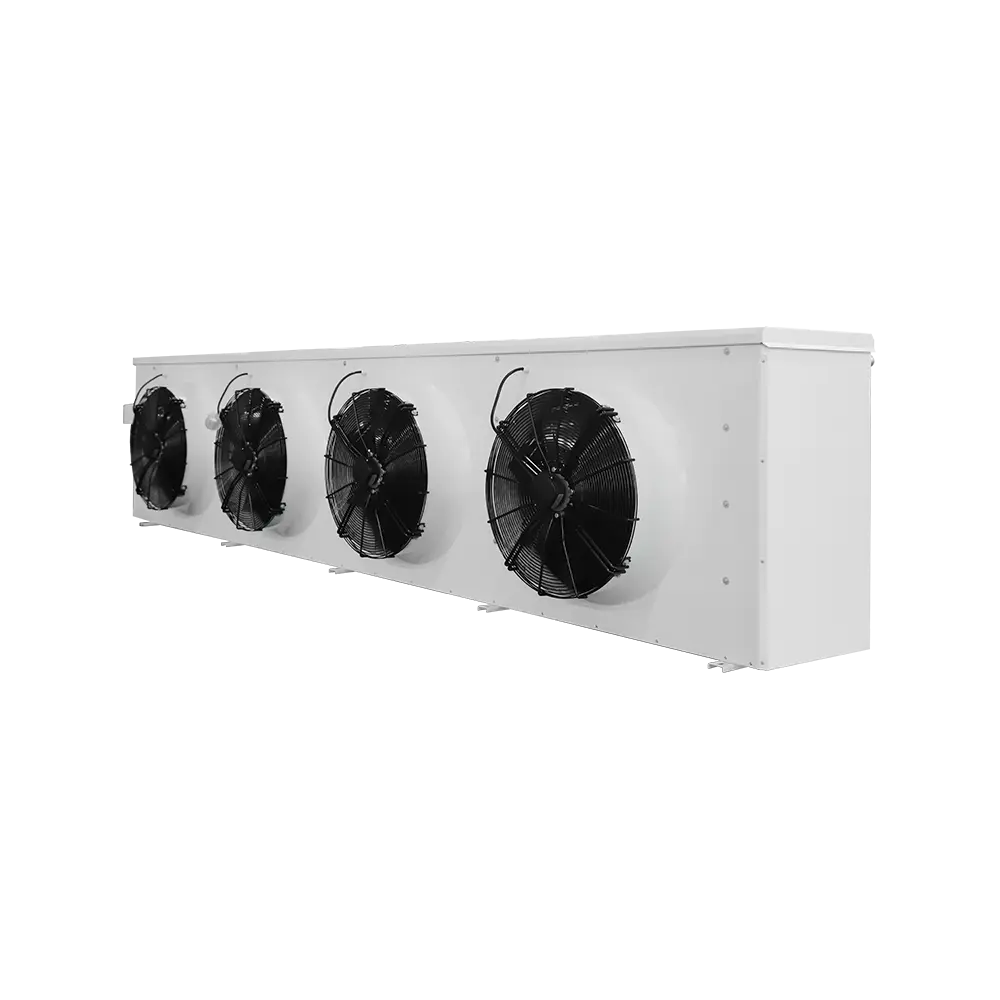

GUM Series Large Ceiling Type Evaporator

The GUM Series Large Ceiling Type Evaporator is designed for large-scale commercial and industrial refrigeration systems that require efficient heat transfer, reliable cooling performance, and stable temperature control. Its ceiling-mounted structure helps maximize available cold room space while providing effective air circulation throughout the refrigerated area.

Series: GUM Series Large Industrial Ceiling Evaporator

Structure: Quad Deep-Cowl Heavy-Duty Axial Air Cooler

Application: Industrial Cold Storage, Freezing Tunnels & Logistics Hubs

1

2

3

4

5

6

7

8

9

10

COMPONENT 01

Refrigeration Coil

MAIN FUNCTION / ROLE

High-capacity direct expansion or pumped refrigerant evaporation matrix delivering deep thermal absorption.

GUM SERIES TECHNICAL SPEC

15.88mm (5/8") heavy-walled inner-grooved seamless copper tubes mechanically expanded into sine-wave corrugated aluminum fins; staggered matrix geometry with 3.2 MPa test pressure rating and built-in defrost element sleeves.

With a high-efficiency refrigeration coil, optimized airflow design, and durable construction, the GUM Series is suitable for large cold rooms, refrigerated warehouses, food processing facilities, meat and seafood storage, and other industrial refrigeration applications.

Key Features of the GUM Large Ceiling Type Evaporator

Large-Capacity Refrigeration Evaporator

The GUM Series is developed for large refrigeration spaces where high cooling capacity and stable temperature control are required. Its large heat exchange surface supports efficient refrigerant evaporation and helps maintain consistent cold room temperatures.

High-Efficiency Evaporator Coil

The refrigeration coil is designed to provide efficient heat transfer between the refrigerant and circulating air. The optimized coil structure helps improve cooling efficiency and supports reliable operation in demanding refrigeration environments.

Powerful Air Circulation

The GUM ceiling type evaporator is equipped with an efficient air circulation system to distribute cooled air throughout the refrigerated space. Effective airflow helps reduce temperature differences and supports uniform cooling across large cold rooms.

Ceiling-Mounted Design

The ceiling-mounted configuration saves valuable floor space and provides a practical solution for large cold storage rooms. Installing the evaporator above the storage area also helps maintain an unobstructed working environment for material handling and warehouse operations.

Reliable Defrost Performance

The GUM Series can be configured for refrigeration applications where regular defrosting is required. Appropriate defrost configuration helps maintain heat transfer efficiency and reduces frost accumulation during low-temperature operation.

Durable Industrial Construction

Designed for commercial and industrial refrigeration applications, the GUM Series uses durable components and a robust structure to support long-term operation in cold storage and food processing environments.

GUM Refrigeration Evaporator Technical Specifications

Kaidi GUM Series Technical Specifications

The GUM Series can be configured according to different refrigeration requirements, including cooling capacity, temperature range, refrigerant conditions, airflow requirements, and installation environment.

Specific technical specifications can be selected according to the required refrigeration capacity, cold room dimensions, operating temperature, refrigerant, and system design.

GUM Large Ceiling Type Evaporator Models & Selection Guide

Selecting the correct GUM Series evaporator requires consideration of several factors, including:

• Required cooling capacity

• Cold room dimensions

• Refrigeration temperature

• Evaporating temperature

• Refrigerant type

• Airflow requirements

• Defrost method

• Installation height

• Required temperature uniformity

• Operating environment

For large cold rooms and industrial refrigeration projects, the evaporator should be selected according to the complete refrigeration system rather than cooling capacity alone.

Large Ceiling Type Evaporator Dimensions & Installation Requirements

The GUM Series is designed for ceiling installation in large refrigeration spaces. Its ceiling-mounted configuration helps save floor space while providing effective air circulation.

Before installation, the following factors should be considered:

• Available ceiling space

• Evaporator dimensions

• Installation height

• Air inlet and outlet clearance

• Airflow direction

• Drainage arrangement

• Refrigerant piping connection

• Electrical connection

• Defrost requirements

• Maintenance access

Adequate clearance around the evaporator is important for airflow, inspection, cleaning, and routine maintenance.

GUM Large Ceiling Type Evaporator Applications for Cold Storage & Industrial Refrigeration

Cold Storage & Refrigerated Warehouses

The GUM Series is suitable for large refrigerated warehouses where stable temperature control and efficient air circulation are essential. Its ceiling-mounted design allows storage and handling areas to remain open and unobstructed.

Food Processing Refrigeration

Food processing facilities require reliable refrigeration to maintain product quality and processing conditions. The GUM evaporator can be integrated into refrigeration systems used in food processing and temperature-controlled production areas.

Meat & Seafood Cold Storage

Meat and seafood storage facilities require dependable low-temperature refrigeration and effective air distribution. The GUM Series supports stable cooling performance for refrigerated and frozen storage environments.

Cold Chain Logistics

Cold chain warehouses and distribution centers require continuous refrigeration to maintain product temperatures during storage and transfer. The GUM Series provides an efficient ceiling-mounted cooling solution for large cold chain facilities.

Commercial Refrigeration

The GUM Large Ceiling Type Evaporator can be applied in commercial cold rooms, food warehouses, supermarkets, and other temperature-controlled storage facilities requiring efficient refrigeration.

Industrial Refrigeration Systems

For industrial refrigeration projects, the GUM Series can be integrated with condensing units and other refrigeration equipment to form a complete refrigeration system for large-scale temperature-controlled environments.

Large Ceiling Type Evaporator vs Other Evaporator Types: Which Is Right for Your Project?

The right evaporator type depends on the size, layout, temperature, and application of the refrigeration room.

A large ceiling type evaporator is particularly suitable for large cold rooms and industrial refrigeration facilities because it can provide high-capacity cooling while making efficient use of ceiling space.

For smaller refrigeration rooms, compact ceiling evaporators or other evaporator configurations may be more appropriate. For large warehouses and industrial applications, the GUM Series offers a practical solution for high-capacity refrigeration and effective air circulation.

How to Select the Right Evaporator for Your Refrigeration System

When selecting a GUM Series evaporator, consider the following factors:

1. Cold Room Size – Determine the room volume and required refrigeration capacity.

2. Operating Temperature – Identify whether the application is medium-temperature or low-temperature refrigeration.

3. Cooling Capacity – Match the evaporator capacity with the refrigeration load.

4. Airflow Requirements – Consider the required air circulation and air throw distance.

5. Defrost Method – Select an appropriate defrost configuration for the operating environment.

6. Installation Conditions – Check ceiling height, available space, and maintenance clearance.

7. Refrigerant System – Ensure compatibility with the complete refrigeration system.

8. Application Environment – Consider food processing, cold storage, logistics, or industrial refrigeration requirements.

Correct evaporator selection helps improve refrigeration efficiency, temperature stability, and long-term system reliability.

Why Choose Kaideli as Your Industrial Refrigeration Equipment Manufacturer?

KAIDELI provides refrigeration equipment solutions for commercial and industrial refrigeration applications. The product range includes refrigeration evaporators, condensing units, condensers, and other refrigeration system components.

The GUM Series is designed with a focus on efficient heat exchange, reliable airflow, practical installation, and long-term refrigeration operation.

For large cold storage and industrial refrigeration projects, KAIDELI can provide evaporator configurations according to project requirements, including cooling capacity, operating temperature, installation conditions, and refrigeration system configuration.

GUM Large Ceiling Type Evaporator FAQs

What is a GUM Large Ceiling Type Evaporator?

The GUM Series is a large ceiling-mounted refrigeration evaporator designed for commercial and industrial cold rooms. It removes heat from the refrigerated space through refrigerant evaporation and forced air circulation.

What applications is the GUM Series suitable for?

The GUM Series is suitable for large cold storage rooms, refrigerated warehouses, food processing facilities, meat and seafood storage, cold chain logistics, commercial refrigeration, and industrial refrigeration systems.

Is the GUM Series suitable for low-temperature refrigeration?

Yes. The GUM Series can be configured for low-temperature refrigeration applications such as frozen food storage and industrial cold storage, subject to the selected system configuration and operating conditions.

What are the advantages of a ceiling type evaporator?

A ceiling-mounted evaporator saves floor space, provides effective air circulation, and is suitable for large refrigerated rooms where unobstructed floor space is important.

How do I choose the right GUM Series model?

The appropriate model should be selected according to cold room size, refrigeration load, operating temperature, evaporating temperature, refrigerant, airflow requirements, installation conditions, and defrost requirements.
