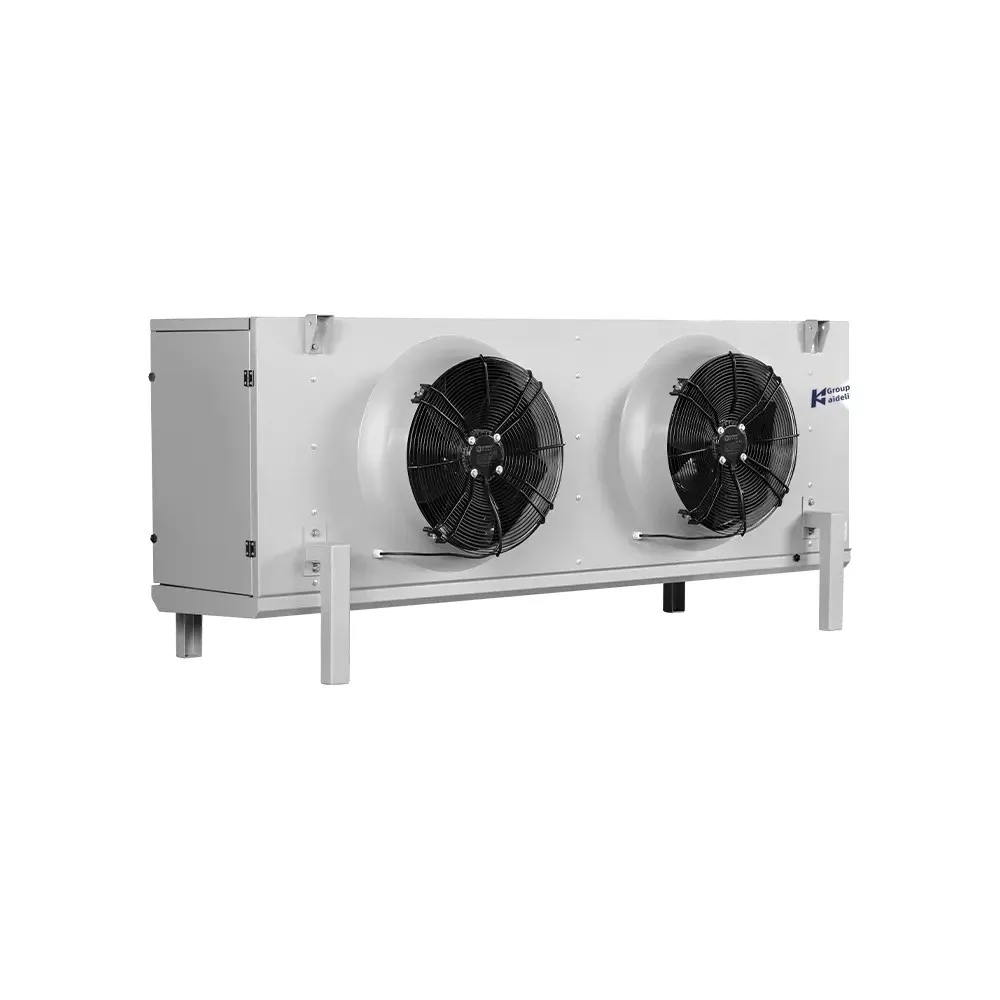

EL Series Industrial Ceiling Type Evaporator

The EL Series Industrial Ceiling Type Evaporator is designed for industrial and commercial refrigeration systems that require efficient air circulation, reliable heat exchange, and stable temperature control. Its ceiling-mounted structure makes effective use of available cold room space while providing consistent cooling performance.

Series: EH Series Commercial Ceiling Evaporator (H2 Model)

Structure: Dual Deep-Cowled Long-Throw Axial Air Cooler

Application: Medium/Low Temperature Cold Storage, Processing & Freezing

1

2

3

4

5

6

7

8

9

10

COMPONENT 01

Evaporator Coil

MAIN FUNCTION / ROLE

High-efficiency direct expansion refrigerant evaporation and cold room air heat absorption core.

EH SERIES TECHNICAL SPEC

Staggered inner-grooved seamless copper tubes mechanically expanded into sine-wave aluminum fins with electric defrost heater element guide tubes; 3.0 MPa burst test rating.

The EL Series is suitable for cold storage rooms, refrigerated warehouses, food processing facilities, meat and seafood storage, cold chain logistics, and other temperature-controlled environments.

Key Features of the EL Industrial Refrigeration Evaporator

High-Efficiency Refrigeration Evaporator

The EL Series provides efficient heat exchange between the refrigerant and the air inside the refrigerated space. Its optimized evaporator design helps improve cooling performance and maintain stable room temperatures.

Ceiling-Mounted Evaporator Design

The ceiling-type configuration allows the evaporator to be installed above the storage area, reducing the floor space occupied by refrigeration equipment. This makes it suitable for cold rooms and industrial refrigeration facilities where usable floor space is important.

Efficient Air Cooler Performance

The evaporator fan system promotes continuous air circulation throughout the refrigerated room. Effective airflow helps distribute cold air more evenly and reduces temperature differences within the storage space.

Optimized Heat Exchanger Coil

The refrigeration coil provides an effective heat transfer surface for refrigerant evaporation. The coil and fin configuration is designed to support efficient heat exchange and reliable refrigeration operation.

Reliable Fan and Airflow System

High-efficiency fans provide the airflow required for heat exchange and cold air distribution. Stable airflow helps improve cooling uniformity and supports continuous operation in demanding refrigeration environments.

Easy Installation and Maintenance

The ceiling-mounted structure is designed for practical installation and routine maintenance. Proper access to the fan, coil, and other components helps simplify inspection, cleaning, and servicing.

EL Series Industrial Evaporator Technical Specifications

The EL Series Industrial Ceiling Type Evaporator can be configured according to the refrigeration capacity, room temperature, refrigerant type, airflow requirements, and application conditions.

EL Series Low-Temperature Evaporator Configuration

For low-temperature cold storage applications, the evaporator can be selected according to the required cooling capacity, room temperature, defrost requirements, and operating conditions.

EL Series Medium-Temperature Evaporator Configuration

For medium-temperature refrigeration applications, the EL Series can provide stable cooling and air circulation for refrigerated storage, food processing, and other commercial refrigeration environments.

Industrial Evaporator Operating Range & Cooling Performance

The operating performance of a refrigeration evaporator depends on factors such as refrigerant type, evaporating temperature, room temperature, airflow, humidity, and required cooling capacity.

Medium-Temperature Refrigeration Applications

Medium-temperature applications typically include refrigerated warehouses, food storage, beverage storage, and food processing areas where stable temperature control is required.

Low-Temperature Cold Storage Applications

Low-temperature applications include frozen food storage, meat and seafood freezing, frozen warehouses, and other industrial refrigeration environments requiring lower storage temperatures.

Evaporator Coil, Fan & Refrigeration Component Configuration

Refrigeration Evaporator Coil

The evaporator coil is the main heat exchange component. Refrigerant absorbs heat from the surrounding air as it evaporates inside the coil, producing the cooling effect required by the refrigeration system.

Aluminum Fins & Heat Transfer Surface

Aluminum fins increase the effective heat transfer area of the evaporator and improve heat exchange between the refrigerated air and the refrigerant circuit.

Evaporator Fan & Fan Motor

The fan system circulates air through the evaporator coil and distributes cooled air throughout the refrigerated room. Fan configuration can be selected according to the required airflow and cooling application.

Defrost System

For low-temperature refrigeration applications, frost can accumulate on the evaporator coil during operation. An appropriate defrost configuration helps maintain heat transfer performance and stable airflow.

Refrigerant Inlet & Outlet Connections

The refrigerant connections provide the flow path between the evaporator and the rest of the refrigeration system. Correct piping and system matching are important for reliable operation.

EL Series Ceiling Type Evaporator Models & Selection Guide

Selecting the appropriate industrial ceiling type evaporator requires consideration of cooling capacity, room temperature, evaporating temperature, refrigerant type, room dimensions, airflow requirements, and defrost conditions.

The evaporator should be properly matched with the refrigeration condensing unit or refrigeration system to achieve stable cooling performance.

Ceiling Type Evaporator Dimensions & Installation Requirements

The EL Series should be installed in a suitable ceiling position with sufficient clearance for air intake, air discharge, maintenance, and defrost drainage.

Proper installation helps ensure effective airflow throughout the cold room and reduces the risk of restricted air circulation. The installation location should also allow convenient access for routine cleaning and maintenance.

Industrial Ceiling Evaporator Applications for Cold Storage & Refrigeration

Cold Storage & Refrigerated Warehouses

The EL Series is suitable for refrigerated warehouses and cold storage rooms that require continuous air circulation and stable temperature control.

Food Processing Refrigeration

Food processing facilities require reliable refrigeration during processing, storage, and temperature-controlled operations. The EL Series can provide efficient cooling for these environments.

Meat & Seafood Cold Storage

Meat and seafood storage facilities require stable refrigeration conditions. The ceiling-mounted evaporator provides continuous cooling and helps maintain consistent room temperatures.

Frozen Food Storage

The EL Series can be applied to frozen food storage areas where low-temperature refrigeration and reliable evaporator performance are required.

Cold Chain Logistics

Cold chain warehouses and distribution facilities rely on stable refrigeration to maintain product temperature during storage and handling. The EL Series can be integrated into cold chain refrigeration systems.

Industrial Refrigeration Systems

The evaporator is suitable for industrial refrigeration systems requiring reliable heat exchange, efficient airflow, and continuous cooling operation.

Ceiling Type Evaporator vs Other Industrial Air Coolers

Ceiling-type evaporators are designed to make efficient use of overhead installation space while providing air circulation throughout the refrigerated room. Compared with floor-mounted cooling equipment, a ceiling-mounted configuration can help preserve usable floor space.

The appropriate evaporator type should be selected according to room dimensions, cooling capacity, temperature requirements, airflow conditions, installation space, and refrigeration system design.

How to Select the Right Industrial Refrigeration Evaporator

When selecting an EL Series Industrial Ceiling Type Evaporator, consider the following factors:

• Required cooling capacity

• Cold room temperature

• Evaporating temperature

• Refrigerant type

• Room dimensions

• Airflow requirements

• Fan configuration

• Defrost method

• Installation height

• Available ceiling space

• Refrigeration system configuration

Correct evaporator selection helps maintain stable room temperatures and supports efficient operation of the complete refrigeration system.

Why Choose Kaideli as Your Industrial Refrigeration Equipment Manufacturer?

KAIDELI provides refrigeration equipment solutions for commercial and industrial applications. The EL Series Industrial Ceiling Type Evaporator is designed to meet practical requirements for cold storage, food processing, refrigerated warehouses, and industrial refrigeration systems.

KAIDELI offers different refrigeration equipment configurations to support various temperature requirements, cooling capacities, installation conditions, and refrigeration system designs.

EL Series Industrial Ceiling Type Evaporator FAQs

What is an EL Series Industrial Ceiling Type Evaporator?

The EL Series is a ceiling-mounted refrigeration evaporator designed to provide efficient heat exchange and cold air circulation in industrial and commercial refrigeration applications.

Where is the EL Series evaporator used?

The EL Series can be used in cold storage rooms, refrigerated warehouses, food processing facilities, meat and seafood storage, frozen food storage, cold chain logistics, and industrial refrigeration systems.

What is the advantage of a ceiling-type evaporator?

A ceiling-mounted evaporator makes effective use of overhead space, helps preserve usable floor area, and provides efficient cold air circulation throughout the refrigerated room.

Is the EL Series suitable for low-temperature refrigeration?

Yes. The EL Series can be configured for low-temperature refrigeration applications such as frozen food storage and industrial cold storage, subject to the required operating conditions and system configuration.

How do I choose the right EL Series model?

The appropriate model should be selected according to cooling capacity, room temperature, evaporating temperature, refrigerant type, room size, airflow requirements, defrost conditions, and installation requirements.
