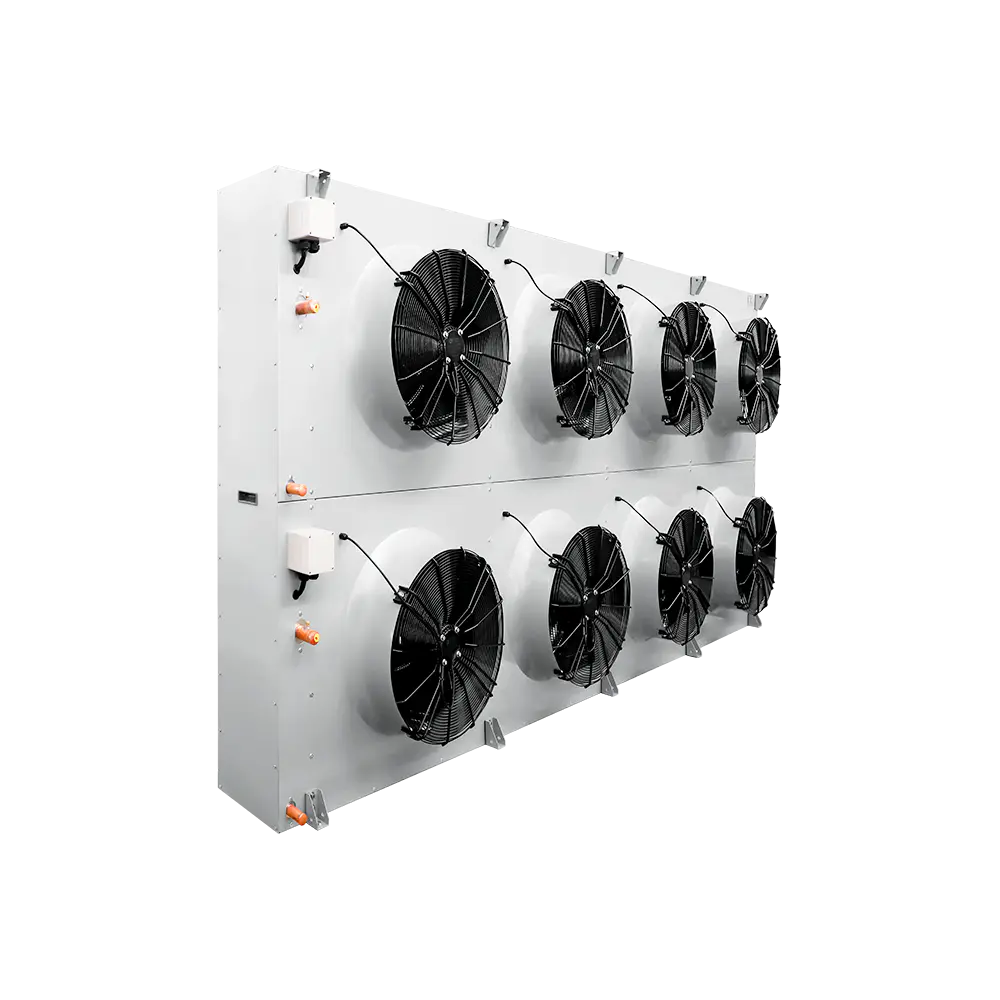

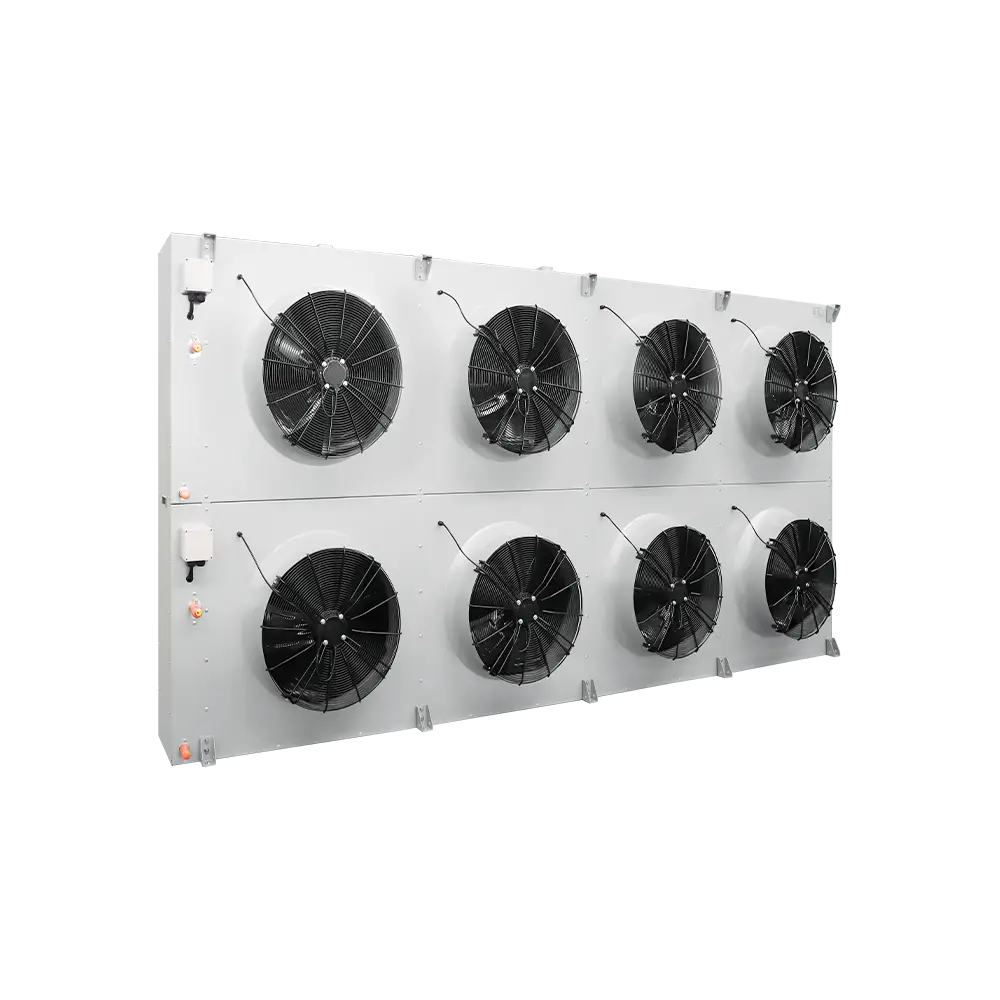

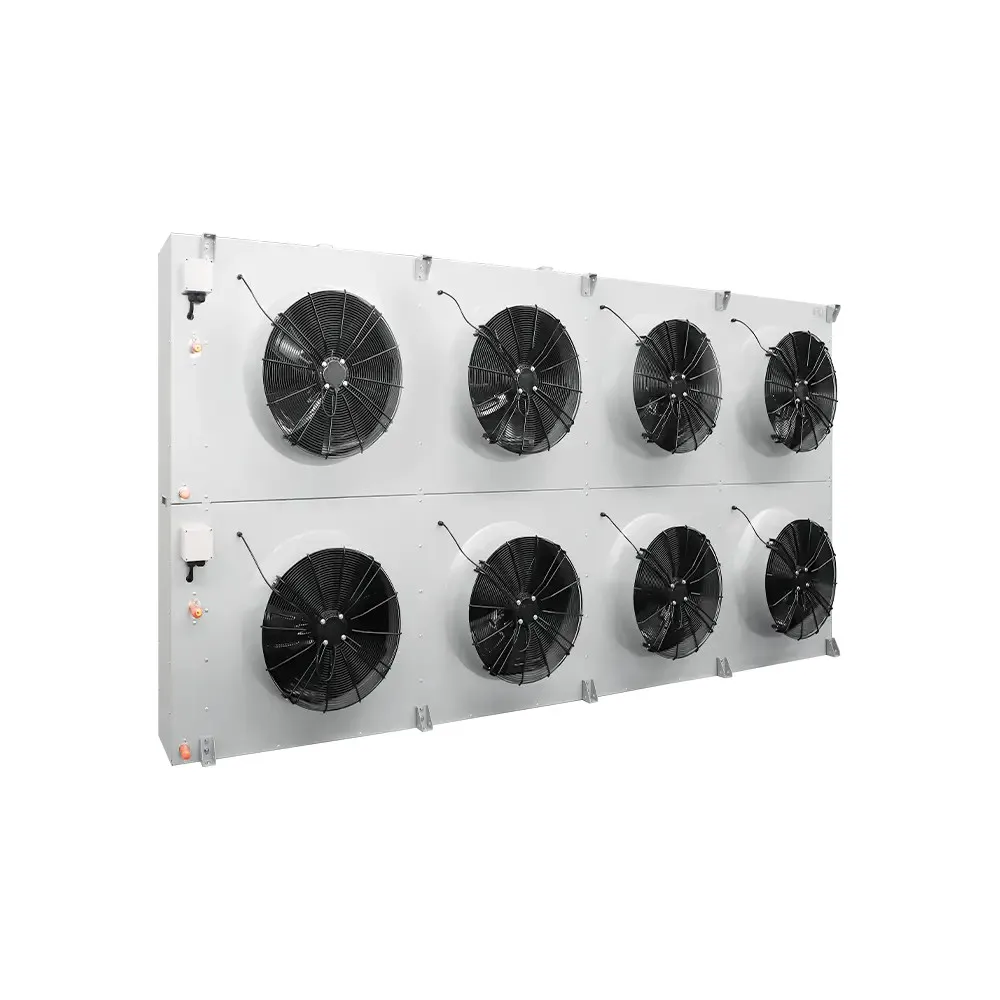

CL Series
-
KAIDELI
-
Vertical Side Mounted Condenser
-
Air-Cooled
-
380V / 3 Phase / 50Hz
The CL Series Vertical Side Mounted Condenser is designed for commercial and industrial refrigeration systems that require efficient heat rejection, reliable operation, and flexible equipment installation. Its vertical side-mounted structure provides a practical solution for refrigeration systems with limited installation space or specific equipment layout requirements.
The CL Series can be integrated into refrigeration systems for cold storage, food processing, refrigerated warehouses, industrial cooling, and other temperature-controlled applications.
Key Features of the CL Series Vertical Side Mounted Condenser
Vertical Side-Mounted Condenser Design
The vertical side-mounted configuration allows the condenser to be installed efficiently alongside refrigeration equipment. This design can help optimize equipment arrangement and make better use of available installation space.
High-Efficiency Heat Rejection
The CL Series is designed to transfer heat efficiently from the refrigerant to the surrounding environment, supporting stable condensing performance and reliable refrigeration system operation.
Efficient Refrigeration Condenser Coil
The condenser coil provides an effective heat-transfer surface for refrigerant condensation. Its configuration is designed to support efficient heat exchange during continuous refrigeration operation.
Reliable Condenser Fan System
The condenser fan system promotes airflow across the heat exchanger and helps remove heat from the refrigerant. Reliable airflow is important for maintaining suitable condensing temperatures.
Compact Vertical Installation
The vertical structure provides a compact installation solution for refrigeration systems where floor space and equipment positioning are important considerations.
Durable Condenser Construction
The CL Series is designed for continuous refrigeration applications and can be configured with durable materials and components suitable for commercial and industrial operating environments.
CL Series Refrigeration Condenser Technical Specifications
The CL Series Vertical Side Mounted Condenser can be configured according to different refrigeration system requirements. Important selection parameters include condenser capacity, refrigerant type, condensing temperature, ambient temperature, airflow requirements, fan configuration, and installation dimensions.
| Model | Heat exchange capacity (KW) | Area | Pipe volume | Fan | Noise dB(A) | Interface specifications (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ΔT=15K | m² | dm³ | Air volume (m³/h) | Power (W) | Current (A) | Intake | Bleeding | |||
| ● φ400 Fan Series Specifications | ||||||||||
| CL4011C4 | 11.2 | 20.8 | 2.7 | 4000 | 205 | 0.51 | 45 | φ16 | φ12 | 33 |
| CL4011D4 | 13.3 | 27.7 | 3.6 | 3700 | 205 | 0.51 | 45 | φ16 | φ12 | 37 |
| CL4012C4 | 22.5 | 41.6 | 5.2 | 8000 | 410 | 1.02 | 48 | φ22 | φ16 | 57 |
| CL4012D4 | 26.6 | 55.4 | 6.9 | 7400 | 410 | 1.02 | 48 | φ22 | φ16 | 64 |
| CL4013C4 | 33.6 | 62.3 | 7.7 | 12000 | 615 | 1.53 | 50 | φ28 | φ22 | 82 |
| CL4013D4 | 39.9 | 83.1 | 10.2 | 11100 | 615 | 1.53 | 50 | φ28 | φ22 | 93 |
| CL4022C4 | 44.9 | 83.1 | 10.4 | 16000 | 820 | 2.04 | 51 | φ28 | φ22 | 109 |
| CL4022D4 | 53.2 | 110.8 | 13.8 | 14800 | 820 | 2.04 | 51 | φ28 | φ22 | 124 |
| CL4023C4 | 67.3 | 124.7 | 15.3 | 24000 | 1230 | 3.06 | 53 | φ35 | φ22 | 155 |
| CL4023D4 | 79.8 | 166.2 | 20.5 | 22200 | 1230 | 3.06 | 53 | φ35 | φ22 | 177 |
| CL4024C4 | 89.7 | 166.2 | 20.3 | 32000 | 1640 | 4.08 | 55 | φ35 | φ28 | 202 |
| CL4024D4 | 106.4 | 221.6 | 27.0 | 29600 | 1640 | 4.08 | 55 | φ35 | φ28 | 231 |
| Model | Heat exchange capacity (KW) | Area | Pipe volume | Fan | Noise dB(A) | Interface specifications (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ΔT=15K | m² | dm³ | Air volume (m³/h) | Power (W) | Current (A) | Intake | Bleeding | |||
| ● φ500 Fan Series Specifications | ||||||||||
| CL5011C4 | 23.6 | 36.9 | 4.7 | 6400 | 414 | 0.85 | 52 | φ22 | φ16 | 57 |
| CL5011D4 | 25.4 | 49.3 | 6.2 | 6000 | 414 | 0.85 | 52 | φ22 | φ16 | 63 |
| CL5012C4 | 47.3 | 73.9 | 9.0 | 12800 | 828 | 1.70 | 55 | φ28 | φ22 | 101 |
| CL5012D4 | 50.7 | 98.5 | 12.1 | 12000 | 828 | 1.70 | 55 | φ28 | φ22 | 114 |
| CL5013C4 | 70.9 | 110.8 | 13.4 | 19200 | 1242 | 2.55 | 56 | φ35 | φ22 | 147 |
| CL5013D4 | 76.1 | 147.8 | 17.9 | 18000 | 1242 | 2.55 | 56 | φ35 | φ22 | 166 |
| CL5022C4 | 94.6 | 147.8 | 18.1 | 25600 | 1656 | 3.40 | 57 | φ35 | φ28 | 191 |
| CL5022D4 | 101.5 | 197.0 | 24.1 | 24000 | 1656 | 3.40 | 57 | φ35 | φ28 | 217 |
| CL5023C4 | 141.8 | 221.6 | 26.8 | 38400 | 2484 | 5.10 | 59 | φ42 | φ35 | 275 |
| CL5023D4 | 152.2 | 295.5 | 35.7 | 36000 | 2484 | 5.10 | 59 | φ42 | φ35 | 314 |
| CL5024C4 | 189.1 | 295.5 | 35.5 | 51200 | 3312 | 6.80 | 61 | φ42 | φ35 | 358 |
| CL5024D4 | 202.9 | 394.0 | 47.3 | 48000 | 3312 | 6.80 | 61 | φ54 | φ35 | 409 |
| Model | Heat exchange capacity (KW) | Area | Pipe volume | Fan | Noise dB(A) | Interface specifications (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ΔT=15K | m² | dm³ | Air volume (m³/h) | Power (W) | Current (A) | Intake | Bleeding | |||
| ● φ630 Fan Series Specifications | ||||||||||
| CL6311C4 | 36.3 | 57.7 | 7.2 | 11500 | 800 | 1.60 | 57 | φ28 | φ22 | 81 |
| CL6311D4 | 41.5 | 77.0 | 9.6 | 10750 | 800 | 1.60 | 57 | φ28 | φ22 | 92 |
| CL6312C4 | 72.7 | 115.4 | 14.0 | 23000 | 1600 | 3.20 | 60 | φ35 | φ28 | 148 |
| CL6312D4 | 83.1 | 153.9 | 18.7 | 21500 | 1600 | 3.20 | 60 | φ35 | φ28 | 168 |
| CL6313C4 | 109.1 | 173.2 | 20.8 | 34500 | 2400 | 4.80 | 61 | φ35 | φ28 | 214 |
| CL6313D4 | 124.5 | 230.9 | 27.8 | 32250 | 2400 | 4.80 | 61 | φ42 | φ28 | 244 |
| CL6322C4 | 145.4 | 230.9 | 28.0 | 46000 | 3200 | 6.40 | 62 | φ42 | φ35 | 281 |
| CL6322D4 | 166.2 | 307.8 | 37.4 | 43000 | 3200 | 6.40 | 62 | φ42 | φ35 | 322 |
| CL6323C4 | 218.1 | 346.2 | 41.6 | 69000 | 4800 | 9.60 | 64 | φ54 | φ42 | 378 |
| CL6323D4 | 249.3 | 461.8 | 55.5 | 64500 | 4800 | 9.60 | 64 | φ54 | φ42 | 438 |
| CL6324C4 | 290.0 | 461.8 | 55.3 | 92000 | 6400 | 12.80 | 66 | 2-φ42 | 2-φ35 | 532 |
| CL6324D4 | 332.4 | 615.7 | 73.7 | 86000 | 6400 | 12.80 | 66 | 2-φ42 | 2-φ35 | 612 |
The final condenser configuration should be selected according to the refrigeration system design and required heat rejection capacity.
Vertical Condenser Heat Rejection & Operating Performance
Refrigeration Heat Transfer
The primary function of the CL Series condenser is to remove heat from the high-temperature, high-pressure refrigerant vapor discharged by the compressor. Efficient heat transfer allows the refrigerant to condense into a high-pressure liquid.
Condensing Temperature Control
Proper condenser selection helps maintain suitable condensing temperatures under different operating conditions. Correct heat rejection capacity is important for stable refrigeration system performance.
Continuous Refrigeration Operation
The CL Series can be used in refrigeration systems that require continuous heat rejection, including cold storage, commercial refrigeration, and industrial refrigeration applications.
Condenser Coil, Fan & Refrigeration Component Configuration
Condenser Coil
The condenser coil provides the main heat-transfer surface where refrigerant releases heat and changes from vapor to liquid.
Condenser Fan
The condenser fan generates airflow through the condenser coil to improve heat dissipation and maintain effective condensing performance.
Heat Transfer Components
The heat-transfer structure is designed to support efficient refrigerant-to-air heat exchange while maintaining reliable operation during continuous refrigeration cycles.
Refrigeration Connections
The CL Series can be integrated with refrigerant piping and connected to refrigeration compressors, receivers, expansion devices, and other system components according to the refrigeration system design.
CL Series Vertical Side Mounted Condenser Models & Selection Guide
Selecting the appropriate CL Series condenser requires consideration of the refrigeration system's heat rejection requirements and operating conditions.
Key factors include:
Required heat rejection capacity
Refrigerant type
Condensing temperature
Ambient temperature
Refrigeration capacity
Airflow requirements
Condenser fan configuration
Installation space
Refrigerant connection size
Power supply
Operating environment
Proper condenser sizing helps ensure stable refrigeration performance and efficient system operation.
Vertical Side Mounted Condenser Dimensions & Installation Requirements
The CL Series should be installed on a suitable and stable structure with sufficient clearance for airflow, refrigerant piping, electrical connections, inspection, and maintenance.
The vertical side-mounted design provides flexibility for refrigeration equipment layouts where conventional horizontal condenser installation may not be suitable.
Adequate ventilation and unrestricted airflow around the condenser are important for maintaining effective heat rejection.
CL Series Condenser Applications for Commercial & Industrial Refrigeration
Cold Storage & Refrigerated Warehouses
The CL Series can be used as part of refrigeration systems serving cold storage rooms, refrigerated warehouses, and temperature-controlled storage facilities.
Food Processing Refrigeration
Food processing facilities can use refrigeration condensers for process cooling, chilled storage, production areas, and temperature-controlled environments.
Meat & Seafood Refrigeration
The condenser can be integrated into refrigeration systems used for chilled and frozen meat and seafood storage.
Cold Chain Logistics
Cold chain facilities require dependable heat rejection equipment to support continuous refrigeration operation. The CL Series can be integrated into suitable cold chain refrigeration systems.
Commercial Refrigeration
The CL Series can be applied to commercial refrigeration systems where compact condenser installation and reliable heat rejection are required.
Industrial Refrigeration Systems
Industrial refrigeration applications can use the CL Series as part of larger refrigeration systems requiring continuous and stable condenser performance.
Vertical Side Mounted Condenser vs Conventional Condenser
A vertical side-mounted condenser provides a different installation configuration from conventional condenser designs. Its side-mounted structure can be useful when equipment layout, installation height, or available floor space affects condenser positioning.
The appropriate condenser design depends on heat rejection requirements, available installation space, airflow conditions, refrigerant type, and overall refrigeration system configuration.
How to Select the Right Refrigeration Condenser for Your System
When selecting a CL Series Vertical Side Mounted Condenser, consider the following factors:
Refrigeration capacity
Required heat rejection capacity
Refrigerant type
Condensing temperature
Ambient temperature
Compressor capacity
Airflow conditions
Condenser dimensions
Fan configuration
Installation location
Refrigerant piping requirements
Power supply
A proper refrigeration load calculation and heat rejection analysis can help determine the suitable condenser configuration.
Why Choose Kaideli as Your Refrigeration Equipment Manufacturer?
Kaideli provides refrigeration equipment and heat rejection solutions for commercial and industrial refrigeration applications. The CL Series Vertical Side Mounted Condenser is designed to provide flexible installation and reliable heat transfer for different refrigeration system configurations.
The condenser can be integrated into refrigeration systems used in cold storage, food processing, cold chain logistics, commercial refrigeration, and industrial refrigeration projects.
CL Series Vertical Side Mounted Condenser FAQs
What is a CL Series Vertical Side Mounted Condenser?
The CL Series Vertical Side Mounted Condenser is a refrigeration condenser designed with a vertical side-mounted structure for efficient heat rejection and flexible installation in commercial and industrial refrigeration systems.
What is the function of a refrigeration condenser?
A refrigeration condenser removes heat from high-pressure refrigerant vapor discharged by the compressor and condenses the refrigerant into a high-pressure liquid.
What are the advantages of a vertical side-mounted condenser?
The vertical side-mounted configuration can provide flexible equipment positioning and help optimize installation space, particularly where floor space or equipment layout is limited.
What refrigeration systems can use the CL Series?
The CL Series can be used in cold storage, refrigerated warehouses, food processing, cold chain logistics, commercial refrigeration, and industrial refrigeration systems.
How do I choose the right CL Series condenser?
The appropriate model should be selected according to refrigeration capacity, heat rejection requirements, refrigerant type, condensing temperature, ambient temperature, airflow, installation dimensions, and system configuration.
