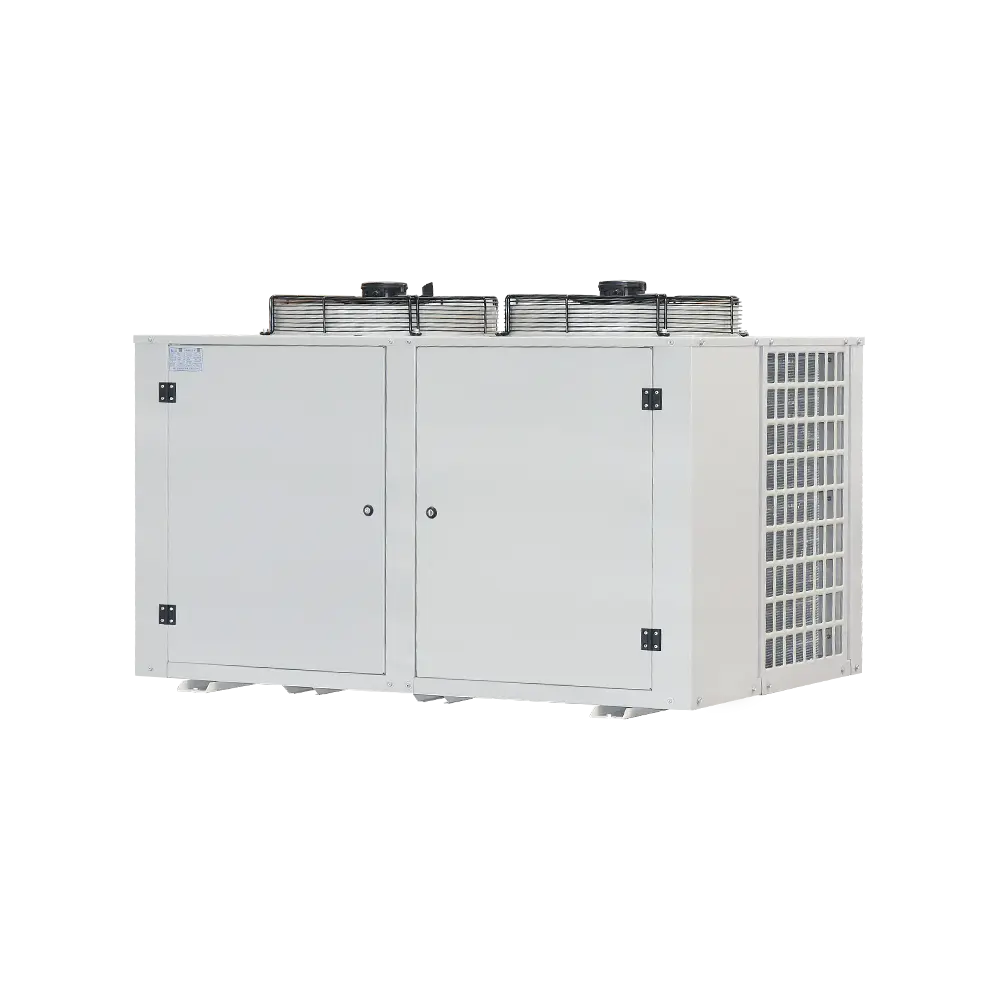

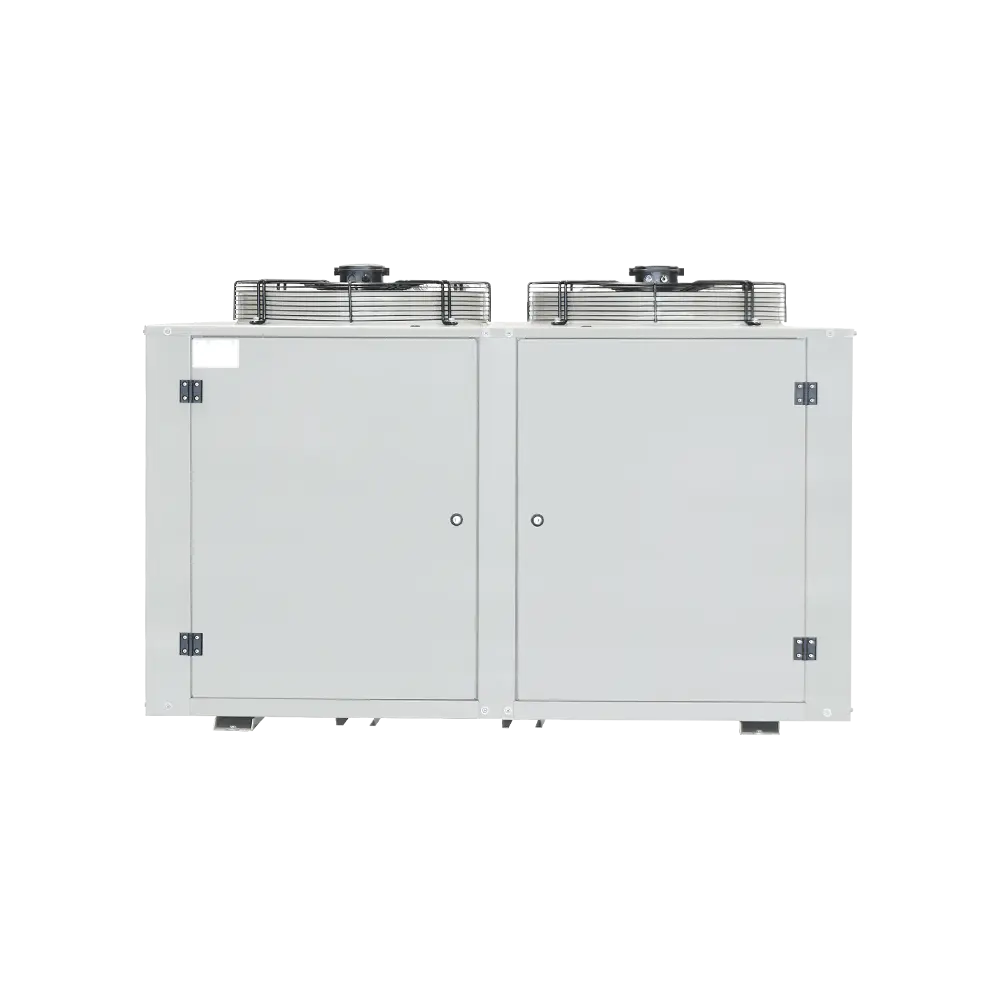

BB Series Box Type Condensing Unit

The BB Series Box Type Condensing Unit is a compact refrigeration condensing unit designed for commercial and industrial refrigeration systems. Its enclosed box-type structure integrates the main refrigeration components into a compact unit, providing a practical solution for cold storage, cold rooms, refrigerated warehouses, food processing, and other refrigeration applications.

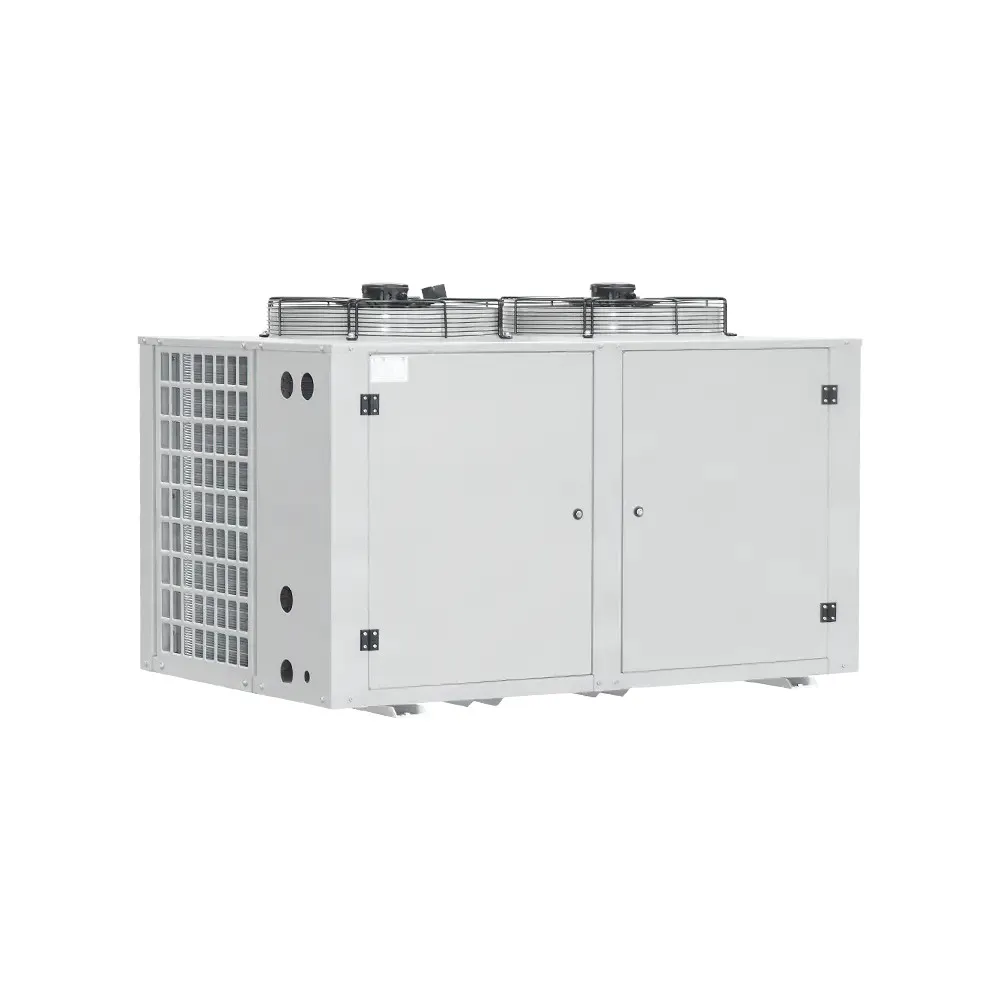

Box-type Condensing Unit

Interactive 8-Component Modular Breakdown

Click pins to inspect

1

2

3

4

5

6

7

8

The BB Series can be configured according to different refrigeration capacity, evaporating temperature, refrigerant, condenser type, and installation requirements.

Refrigeration Compressor

The refrigeration compressor is the core component of the BB Series condensing unit. The compressor configuration can be selected according to the required refrigeration capacity, operating temperature, refrigerant, and refrigeration system requirements.

Key Features of the BB Series Box Type Condensing Unit

Compact Box Type Refrigeration Unit

The BB Series adopts an enclosed box type condensing unit design, integrating the major refrigeration components within a compact housing. This configuration helps provide a neat installation appearance while protecting internal components.

High-Efficiency Refrigeration Compressor

The refrigeration compressor is selected and matched according to the required operating conditions and refrigeration capacity, supporting stable performance for commercial and industrial refrigeration applications.

High-Efficiency Refrigeration Condenser

The refrigeration condenser is designed to reject heat from the refrigeration system efficiently. The condenser configuration can be selected according to the application environment and system requirements.

Integrated Refrigeration Components

The BB Series Box Type Condensing Unit integrates essential refrigeration components into a compact and organized box-type system. This integrated configuration provides reliable refrigeration performance while simplifying installation, system configuration, and routine maintenance for commercial and industrial refrigeration applications.

Enclosed Box Type Design

The enclosed structure gives the BB Series a clean and compact appearance while providing convenient integration of the refrigeration compressor, condenser, controls, and accessories.

Flexible Refrigeration System Configuration

The BB Series can be configured for different medium-temperature and low-temperature refrigeration applications according to refrigeration capacity, evaporating temperature, refrigerant, compressor configuration, and installation conditions.

BB Series Refrigeration Condensing Unit Technical Specifications

Medium & Low Temperature Condensing Unit Operating Range

The BB Series can be configured for both medium-temperature refrigeration and low-temperature refrigeration applications. The actual operating range depends on the selected compressor, refrigerant, refrigeration capacity, condenser configuration, and system design.

Medium Temperature Refrigeration Applications

Medium-temperature refrigeration configurations can be used for:

• Cold rooms

• Food storage

• Beverage refrigeration

• Dairy refrigeration

• Commercial refrigeration

• Refrigerated warehouses

Low Temperature Refrigeration Applications

Low-temperature refrigeration configurations can be used for:

• Frozen food storage

• Meat cold storage

• Seafood refrigeration

• Freezer rooms

• Frozen food processing

• Cold chain refrigeration

Compressor, Condenser & Refrigeration Component Configuration

Refrigeration Compressor

The refrigeration compressor provides the compression stage required by the refrigeration cycle. Compressor selection should consider the required refrigeration capacity, evaporating temperature, refrigerant, and operating conditions.

Refrigeration Condenser

The condenser removes heat from the refrigerant and supports the condensation process. The condenser type and capacity should be matched with the selected compressor and refrigeration system.

Liquid Receiver & Refrigeration Accessories

The BB Series can be configured with a liquid receiver and essential refrigeration accessories, including:

• Liquid receiver

• Filter drier

• Sight glass

• Solenoid valve

• Service valves

• Refrigeration piping components

Controls & Protection Components

The refrigeration condensing unit can be configured with appropriate controls and protection components according to system requirements, such as pressure switches and other refrigeration protection devices.

BB Series Box Type Condensing Unit Models & Selection Guide

Selecting the appropriate BB Series condensing unit requires consideration of the complete refrigeration system.

Key selection factors include:

• Refrigeration capacity

• Evaporating temperature

• Condensing temperature

• Refrigerant

• Compressor model

• Condenser capacity

• Ambient temperature

• Installation conditions

• Power supply

BB Series Box Type Condensing Unit Dimensions & Installation Requirements

Box Type Condensing Unit Dimensions & Mounting

The installation area should provide sufficient space for the selected BB Series unit, including the required mounting area and service access.

Ventilation & Installation Clearance

Adequate ventilation and clearance should be provided around the condensing unit according to the condenser configuration and installation environment.

Refrigeration Piping & Electrical Connection

Refrigeration piping should be designed according to the selected refrigeration system configuration, pipe length, operating conditions, and installation requirements.

Electrical connections should follow the specified power supply and applicable electrical standards.

BB Series Condensing Unit Applications for Cold Storage & Industrial Refrigeration

The BB Series is suitable for a range of commercial refrigeration and industrial refrigeration applications.

Cold Storage & Refrigerated Warehouses

The BB Series can be used for cold storage rooms and refrigerated warehouses requiring stable temperature control for food and other temperature-sensitive products.

Food Processing Refrigeration

The unit can be configured for refrigeration systems used in food processing, chilled storage, and frozen food applications.

Meat & Seafood Cold Storage

BB Series refrigeration condensing units can be used for meat cold storage, seafood refrigeration, frozen food storage, and other low-temperature applications.

Cold Chain Logistics

The BB Series can support refrigeration systems used in refrigerated warehouses and cold chain logistics facilities.

Commercial Refrigeration

The compact box type design makes the BB Series suitable for various commercial refrigeration applications, including cold rooms, food storage, beverage refrigeration, and similar systems.

Industrial Refrigeration Systems

For industrial refrigeration projects, the BB Series can be configured according to required refrigeration capacity, operating temperature, compressor selection, condenser configuration, and system conditions.

Box Type vs Open Type Condensing Unit: Which Is Right for Your Project?

Box Type Condensing Unit

A box type condensing unit uses an enclosed housing to integrate and protect the main refrigeration components. It provides a compact and organized refrigeration equipment configuration.

Open Type Condensing Unit

An open type condensing unit generally provides more direct access to the refrigeration components and can offer flexibility for certain installation and maintenance requirements.

Choosing the Right Condensing Unit Design

The choice between a box type and open type condensing unit should consider:

• Installation space

• Component accessibility

• Maintenance requirements

• Environmental conditions

• Refrigeration capacity

• System configuration

• Project requirements

How to Select the Right Condensing Unit for Your Refrigeration System

Determine Required Refrigeration Capacity

Calculate the required refrigeration capacity according to room size, product load, heat load, target temperature, pull-down requirements, and operating conditions.

Select the Appropriate Evaporating Temperature

The evaporating temperature should correspond to the required storage or process temperature and the selected evaporator.

Choose the Refrigerant

The refrigerant should be compatible with the selected compressor, operating temperature, system design, and applicable requirements.

Match Compressor & Condenser Capacity

The compressor and condenser should be properly matched according to the required refrigeration capacity and operating conditions.

Consider Ambient Temperature & Installation Conditions

Ambient temperature, ventilation, installation space, and condenser heat-rejection conditions should be considered during condensing unit selection.

Why Choose KAIDELI as Your Refrigeration Equipment Manufacturer?

Professional Refrigeration Equipment Manufacturing

KAIDELI provides refrigeration equipment and refrigeration system solutions for commercial and industrial applications.

Box Type Condensing Unit Solutions

The BB Series provides a compact enclosed configuration for customers looking for an integrated box type refrigeration condensing unit.

Quality Refrigeration Components

The BB Series can be configured with essential refrigeration components selected according to the application and refrigeration system requirements.

Customized Refrigeration Solutions

KAIDELI can provide customized condensing unit configurations based on refrigeration capacity, temperature range, refrigerant, compressor, condenser, and installation requirements.

Technical Support & After-Sales Service

Technical support can assist with condensing unit selection, refrigeration system configuration, installation requirements, and product-related technical questions.

BB Series Box Type Condensing Unit FAQs

What is a BB Series Box Type Condensing Unit?

The BB Series Box Type Condensing Unit is an enclosed refrigeration condensing unit designed for commercial and industrial refrigeration systems. It integrates the main refrigeration components into a compact box-type housing.

What is the difference between a box type and open type condensing unit?

A box type condensing unit uses an enclosed housing to integrate and protect refrigeration components, while an open type design provides more direct access to the components. The appropriate design depends on the installation environment, maintenance requirements, and refrigeration system configuration.

What temperature range does the BB Series Condensing Unit support?

The BB Series can be configured for medium-temperature and low-temperature refrigeration applications. The actual operating range depends on the selected compressor, refrigerant, refrigeration capacity, and system design.

What refrigeration components are included in the BB Series?

Depending on the configuration, the BB Series may include a refrigeration compressor, condenser, liquid receiver, filter drier, sight glass, solenoid valve, pressure switch, and refrigeration controls.

Is the BB Series suitable for cold storage?

Yes. The BB Series can be configured for cold storage, cold rooms, refrigerated warehouses, frozen food storage, and other commercial or industrial refrigeration applications.

How do I choose the right BB Series model?

The correct BB Series model should be selected according to refrigeration capacity, evaporating temperature, refrigerant, compressor model, condenser configuration, ambient temperature, installation conditions, and power supply.
